The Risk
Damaged or faulty lithium batteries can ignite without warning. Once thermal runaway begins, the fire spreads rapidly and is almost impossible to stop.
High Performance Fire Limitation Blankets.
Fire Cloak™ products protect your people, assets, and businesses from the evolving risks of lithium battery fires.
EVs catch fire — make sure you’re prepared for the worst.
Designed & manufactured in the UK.
The Response
Fire Cloak™ can be deployed in seconds by two people. It smothers the fire, starves it of oxygen, and limits heat radiation.
The Result
The fire is contained. People are protected. Nearby vehicles and buildings are spared. Downtime and financial losses are minimised.
Available in Standard sizes or made-to-measure
Fire Cloak™ is available in three standard sizes, covering everything from a lithium battery to larger commercial vehicles. If you need something outside our standard range, we also offer made-to-measure options to suit your application, built to the same high standards and tested for extreme fire conditions.
Fire Cloak™ Lithium Battery Fire Limitation Blanket (4 x 3m)
Fire Cloak™ Lithium Battery Fire Limitation Blanket (4 x 3m)
Designed to cope with the intense heat of Lithium battery fires.
Sized to cover most EV lithium batteries. Compact, easy to handle and deploy quickly.
- Deployed by two people in seconds
- Supplied in a protective high-vis storage holdall
- Lightweight, rapid-response and mitigation solution for dealerships and workshops
- Designed & manufactured in the UK
Dimensions: 4 x 3 metres
Weight: c.10.2Kg.
SKU: LBB 6143
- Ultra-high silica content technical fabric with dual-sided fire-resistant silicone coating

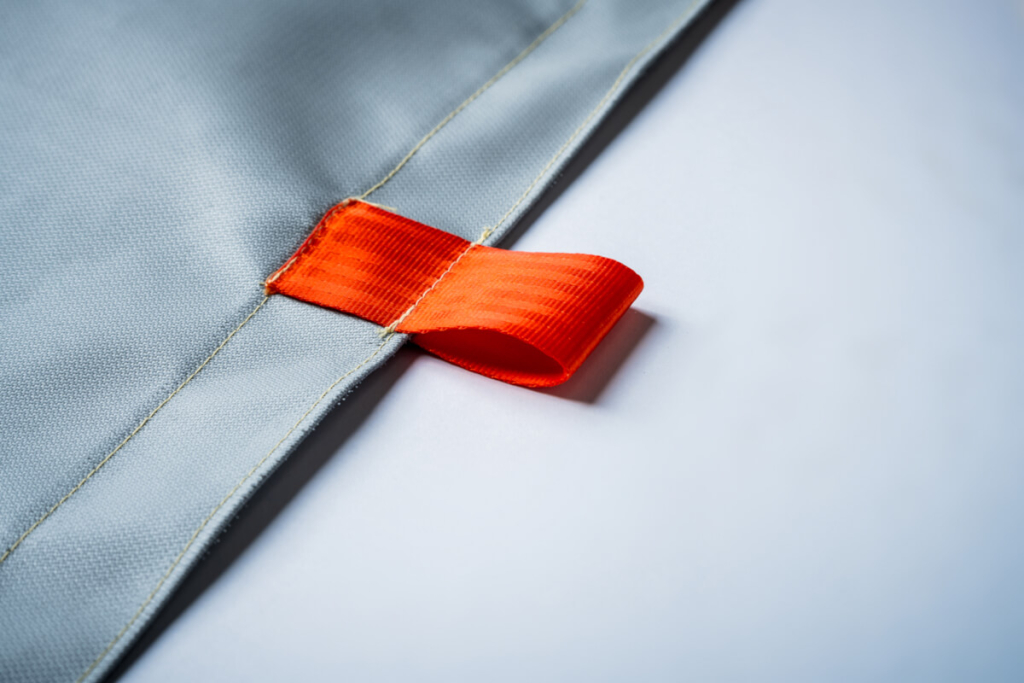

- Heavy-duty pull handles with triple-layer reinforced mounting points
- Stitched with high-temperature resistant stainless steel thread
| Units | Value | Tolerance | |
|---|---|---|---|
| Weight | g/m2 | 700 | ≤5% |
| Thickness | mm | 0.65 | – |
| Fire Resistant Coating | g/m2 | 280 (140 each side) | ≤10% |
| Tensile Strength – BS EN ISO 13934-2:2014 | |||
| Warp | N/5cm | 8,800 | – |
| Weft | N/5cm | 6,435 | – |
| Tear Strength | N | >128 | ≤2% |
| Burst Strength | kPa | >1000 | ≤4% |
| Cut Resistance | – | LEVEL C | – |
as per BS EN 112127:1998
- Temperature resistance: Base fabric will withstand 1,000°C (unstressed)
- Melting point: >1,600°C
- Shrinkage: <7%, tested at 900°C for 4 hours
| Test Standard | Parameter | Average result |
|---|---|---|
| BS EN ISO 811: 2018 | Hydrostatic Pressure Test | 44cm/H2O (Mbar) |
| BS EN ISO 9237: 1995 | Air Permeability | 0.06mm/sec |
| BS 7209: 1990 | Water Vapour Permeability | 187.2g/m2 | WVPI 22.0% |
Although not yet* tested to BS EN 13501-1:2018, and based on experience of this product type our technical fabric manufacturer is of the opinion that LBB6143 would achieve an A1 Reaction to fire classification.
The Fire Cloak™ Lithium Battery Blanket is supplied in a durable high-vis holdall for safe storage and fast deployment. The bag protects the blanket from dirt and, moisture, ensuring it’s always ready for immediate use.
Optional Storage Solutions
For organisations needing additional on-site storage or rapid access solutions, we also offer:
- Wall-Mounted Storage Box – Secure, weather-resistant storage for fixed locations.
- Mobile Storage Trolley – Heavy-duty deployment trolley for quick and safe transport of blankets across sites or large facilities.
Free personalisation and branding available on all storage boxes.
Contact us for package options, pricing, and custom configurations.
Fire Cloak™ EV Fire Limitation Blanket (8 x 6m)
Fire Cloak™ EV Fire Limitation Blanket (8 x 6m)
Versatile coverage for most passenger vehicles and site protection.
Designed to suit saloon cars, compact vans, and smaller 4 x 4s. A highly popular choice for fleet operators, public car parks, charging hubs, and service centres.
- Large footprint for broad coverage
- Deployed easily by two people with the reinforced pull handles
- Supplied in a durable, IP65 rated, waterproof rolltop bag for safe storage and fast deployment. The bag protects the blanket from dirt and, moisture, and UV exposure, ensuring it’s always ready for immediate use
- Designed & manufactured in the UK
- Tested, Passed & Certified to DIN SPEC 91489:2024-11
Dimensions:
8 x 6 metres ≤ 5%
Weight:
28Kg. ≤ 5% (includes storage bag)
SKU:
CFB 2186B

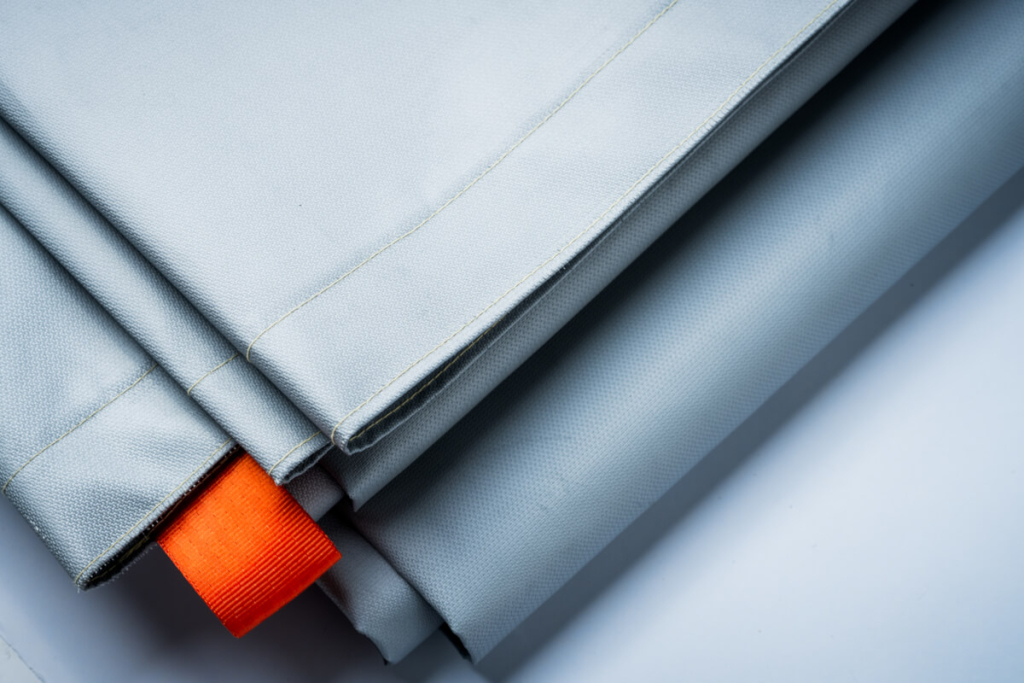

- Specially modified glass fibre fabric with dual-sided fire-resistant silicone coating
- Heavy-duty pull handles with triple-layer reinforced mounting points
- Stitched with high-temperature resistant stainless steel thread
| Units | Value | Tolerance | |
|---|---|---|---|
| Weight | g/m2 | 420 +100 | ≤5% |
| Silicone Coating | g/m2 | 50 (each side) | ≤10% |
| Tensile Strength | |||
| Warp | N/5cm | 9,970 | ≤2% |
| Weft | N/5cm | 5,690 | ≤2% |
| Tear Strength | N | >128 | ≤2% |
| Burst Strength | kPa | >1000 | ≤4% |
| Cut Resistance | – | LEVEL D | – |
as per BS EN 112127:1998
- Temperature resistance: Resisted 1,000°C for 90 minutes (Indicative Furnace Test)
- Certified: DIN SPEC 91489:2024-11, ISO EN 13501-1 2018 (A2, s1, d0), NFPA 701, D6413 / D6413M-22, BS 476-20/22 1987, and more (Refer to Certifications section for complete listing)
| Standard | Test | Result |
|---|---|---|
| BS 476: Part 7: 1997: | Surface Spread of Flame | COMPLIANT |
| BS 476: Part 6: 1989 + A1: 2009 | Fire Propagation Index | COMPLIANT |
| Based on the above test results the product is deemed as meeting a CLASS 0 RATING for fire resistance. This is similar to the CLASS A fire resistance rating in the USA. Refer to Warrington Fire Document Reference: 534679 & 534680 | ||
| Standard | Test | Result |
|---|---|---|
| BS 476-20/22 1987 (similar to USA standard ASTM E119): | Indicative Furnace Test – Resisted 1,000ºC (1,832ºF) for 90 minutes, at which point the test was stopped. | |
| D6413 / D6413M-22: | USA standard for Vertical Flame Resistance | PASSED with Best Possible Result. |
| NFPA 701: | USA standard for Flame Propagation of Textiles | PASSED and NFPA certified. |
| ISO EN 13501-1 2018: | European Standard for Fire Classification of Products | Rating: A2, s1, d0 |
| DIN SPEC 91489:2024-11 | German specification standard for Electric Vehicle fire limitation blankets | CERTIFIED |
| Additional Tests by Intertek Testing Services (UK) Ltd | ||
| Standard | Test | Average results |
|---|---|---|
| BS EN ISO 14419:2010 | Oil / Hydrocarbon Resistance | 7 |
| BS EN ISO 9237:1995 | Air Permeability @ 20°C | 0.22 mm/s |
| BS EN ISO 9237:1995 | Air Permeability @ 400°C | 0.63 mm/s |
| BS EN ISO 13934-1:2013 | Tensile Properties 1 Hr @ 400°C | Warp ~ 1156.6 N Weft ~ 1012.5 N |
| BS EN 20811:1992/ISO 811:1981 | Hydrostatic Pressure Test – cm/H2O (Mbar) | 492 |
Live testing at Horiba MIRA (Motor Industry Research Association, Nuneaton, UK)
The Fire Cloak™ EV Fire Blanket was deployed over a burning Nissan Leaf that was in an advanced stage of Thermal Runaway. The fire temperature dropped rapidly from over 900°C to 47°C in under 10 minutes.
The Fire Cloak™ Lithium Battery Blanket is supplied in a durable high-vis holdall for safe storage and fast deployment. The bag protects the blanket from dirt and, moisture, ensuring it’s always ready for immediate use.
Optional Storage Solutions
For organisations needing additional on-site storage or rapid access solutions, we also offer:
- Wall-Mounted Storage Box – Secure, weather-resistant storage for fixed locations.
- Mobile Storage Trolley – Heavy-duty deployment trolley for quick and safe transport of blankets across sites or large facilities.
Free personalisation and branding available on all storage boxes.
Contact us for package options, pricing, and custom configurations.
Fire Cloak™ XL – EV Fire Limitation Blanket (12 x 9m)
Fire Cloak™ XL – EV Fire Limitation Blanket (12 x 9m)
Maximum coverage for high-risk environments.
Engineered for large panel vans, minibuses, 4 x 4 people carriers, or specialist applications where large scale coverage is critical. Used by recovery services, ferry operators, and commercial fleets.
- Extra large format with contrasting colour centre panel and alignment markers on the length for precise positioning
- Heavy-duty pull handles with triple-layer reinforced corners for durability
- Supplied in a durable, IP65 rated, waterproof rolltop bag for safe storage and fast deployment. The bag protects the blanket from dirt and, moisture, and UV exposure, ensuring it’s always ready for immediate use
- Designed & manufactured in the UK
- Tested, Passed & Certified to DIN SPEC 91489:2024-11
Dimensions:
12 x 9 metres ≤ 5%
Weight:
c.33Kg. ≤ 5% (includes storage bag)
SKU:
CFB 1209-RL
- Multi-panel specially modified glass fibre fabrics with dual-sided silicone coating
- Central red panel for easy alignment during deployment
- Six reinforced pull handles positioned for ease of handling
| Units | Value | Tolerance | |
|---|---|---|---|
| Weight | g/m2 | 200+60 | ≤5% |
| Silicone Coating | g/m2 | 30 (each side) | ≤10% |
| Tensile Strength | |||
| Warp | N/5cm | 4,145 | ≤2% |
| Weft | N/5cm | 3,375 | ≤2% |
| Tear Strength | N | >128 | ≤2% |
| Burst Strength | kPa | >1000 | ≤4% |
| Cut Resistance | – | LEVEL B | – |
as per BS EN 112127:1998
- Temperature resistance: Resisted 1,000°C for 90 minutes (Indicative Furnace Test)
- Certified: ISO EN 13501-1 B,s2,d0, NFPA 701, D6413, and more (Refer to Certifications section for complete listing)
| Standard | Test | Result |
|---|---|---|
| BS 476-20/22 1987 (similar to USA standard ASTM E119): | Indicative Furnace Test – Resisted 1,000ºC (1,832ºF) for 90 minutes, at which point the test was stopped. | |
| D6413 / D6413M-22: | USA standard for Vertical Flame Resistance | PASSED with Best Possible Result. |
| NFPA 701 | USA standard for Flame Propagation of Textiles | PASSED and NFPA certified. |
| ISO EN 13501-1 2018 | European Standard for Fire Classification of Products | Rating: B, s2, d0 |
| DIN SPEC 91489:2024-11 | German specification standard for Electric Vehicle fire limitation blankets | CERTIFIED |
Although not yet tested to BS EN 13501-1:2018, and based on experience of this product type our technical fabric manufacturer is of the opinion that LBB6143 would achieve an A1 Reaction to fire classification.
The Fire Cloak™ Lithium Battery Blanket is supplied in a durable high-vis holdall for safe storage and fast deployment. The bag protects the blanket from dirt and, moisture, ensuring it’s always ready for immediate use.
Optional Storage Solutions
For organisations needing additional on-site storage or rapid access solutions, we also offer:
- Wall-Mounted Storage Box – Secure, weather-resistant storage for fixed locations.
- Mobile Storage Trolley – Heavy-duty deployment trolley for quick and safe transport of blankets across sites or large facilities.
Free personalisation and branding available on all storage boxes.
Contact us for package options, pricing, and custom configurations.
Fire Cloak™ Made-To-Measure
Fire Cloak™ Made-To-Measure
Tailored protection for non-standard vehicles and specialist applications.
As a UK manufacturer, Fire Cloak™ can provide custom-built, made-to-measure, fire blankets to your exact requirements.
- Fully bespoke dimensions and shapes available
- Built to the same rigorous standards as our certified product range
- Fast UK production and expert technical support
Independently tested
Withstands 1,600°C
Deployed in under 30-seconds
Chat With A Fire Cloak™ Expert
Choosing the wrong fire blanket could mean thousands in collateral damage — or worse. That’s why Jason and Jack are here to help you make the right call.
Between them, they know every detail of Fire Cloak’s performance, testing, and deployment — and they’re on hand to guide you through your options with no pressure, no jargon, and no hard sell. Just clear advice from the people who know our products best.
Whether you’re protecting a single EV or securing a high-risk facility, they’ll help you get it right — first time.
Jason
“With EV fires, there’s no room for guesswork. I’ll help you choose the right blanket — so you’re protected when it matters most.”
Ask Jason a question
Jack
“Protecting people and assets comes with a lot of pressure. I’m here to make it simple, and get the right Fire Cloak products in place fast.”
Ask Jack a question
Setting the standard in EV fire safety.
When it comes to lithium battery fires, there’s no room for guesswork.
That’s why Fire Cloak™ is independently certified to DIN SPEC 91489:2024-11, ISO, and BSI standards, because lives, businesses, and reputations depend on it.
Chaos to control in seconds.
EV battery fires can burn at over 1000°C for hours and traditional extinguishers won’t stop them. Fire Cloak™ takes control in seconds, smothering the fire and limiting the damage.
Watch the video below to discover how it’s deployed and tested in real-world conditions.
Who uses Fire Cloak?
Wherever electric vehicles operate, the risk of lithium battery fires comes with them. Fire Cloak™ gives businesses across multiple industries immediate, certified protection – containing EV fires fast and protecting people, vehicles, and property from major loss.
Fire Cloak™ protects:
Motor Dealers
EV fires don’t wait for a workshop slot.
With growing numbers of electric vehicles arriving daily, dealerships face a rising risk of lithium battery fires — whether in transit, on display, or in the workshop.
Fire Cloak™ gives you immediate on-site protection, containing fires fast, limiting damage to your vehicles, premises, and people.
DIN certified. Easy to deploy. No room for guesswork.
Car Parks
Packed car parks mean packed fire risks.
High vehicle volumes in multi-storey or underground car parks increase the risk of fire — especially with EVs present.
Fire Cloak™ gives parking operators immediate, certified protection to contain fires fast and control smoke and flames from spreading to other vehicles, structures, or people.
DIN certified. Fast to deploy. Peace of mind on every level.
Airports
Keep airport fires grounded.
Airport terminals, car parks, and service vehicles like luggage tugs and ground support equipment all carry EV fire risk.
Fire Cloak™ allows airports to act fast, containing fires before they escalate, protecting passengers, aircraft, and terminal facilities from smoke, heat, and panic.
Certified protection that travels well.
Motorsports
Protect high-performance environments.
Motorsport venues, paddocks, and pit lanes involve intense vehicle use, rapid turnaround, and increasing adoption of electric race technology .
Fire Cloak™ allows teams to respond instantly, contain fires at source, and safeguard drivers, crews, and critical equipment without halting operations.
Trusted protection for demanding, high-risk environments.
Charging Stations
EV charging means elevated risk.
Charging is when batteries are most vulnerable to thermal runaway.
Fire Cloak™ gives charge point operators a critical safety solution — containing fires quickly, limiting damage, and reassuring users that protection is always on hand.
Certified safety where charging happens.
Ferries
Contain fires before they spread at sea.
On car ferries, fire containment is vital — not only to prevent vehicle loss but to protect passengers and crew from smoke, panic, and evacuation risk.
Fire Cloak™ allows rapid isolation of EV fires, buying time and limiting exposure in high-density ferry decks.
Certified fire containment for critical marine safety.
Road Tunnels
Contain smoke, gases, and heat fast.
In road tunnels, EV fires present unique dangers — toxic smoke, confined heat, and rapid escalation.
Fire Cloak™ allows responders to contain the fire source early, limit exposure, and maintain safe evacuation conditions while help arrives.
Certified protection for confined spaces.
Stadiums
Protect venues where crowds and EVs converge.
Stadiums and event venues with car parks and charging infrastructure face growing EV fire risk during high-traffic events.
Fire Cloak™ enables rapid response, helping teams contain incidents early and minimise disruption to spectators, staff, and operations.
Proven protection for high-capacity public venues.
Repair Workshops
Damaged vehicles carry hidden fire risk.
Cars in for repair or after accidents have a greater chance of battery instability.
Fire Cloak™ allows workshops, body shops, and service centres to handle EVs safely — with instant fire containment available on-site if the unexpected happens.
Certified protection while you repair.
Recovery Services
Stay protected while transporting risk.
Recovery vehicles often carry accident-damaged or unstable EVs.
Fire Cloak™ gives roadside rescue teams immediate fire containment capability — protecting drivers, vehicles, and bystanders while transporting high-risk loads.
Certified protection on the move.
Shopping Centres
Protect public spaces where EVs gather.
Retail parks and shopping centres with car parks and charging points face rising EV fire risk.
Fire Cloak™ allows facilities teams to act fast, contain fires early, and protect shoppers, staff, and property from disruption.
Certified safety for public environments.
The right protection. In the right place. When it matters most.
Protecting business continuity worldwide.
Trusted by leading car manufacturers, recovery services, fire departments, and EV infrastructure operators worldwide.
Over 10,000 Fire Cloak™ blankets ready for action worldwide.
Frequently asked questions
What is an EV fire limitation blanket, and why choose Fire Cloak™?
An EV fire blanket is a specialist safety product designed to contain lithium battery fires — particularly in electric vehicles. Fire Cloak™ is certified to DIN SPEC 91489:2024-11, tested to withstand up to 1,600°C, and trusted by emergency services, insurers, and fleet operators worldwide. Whether you’re protecting people, vehicles, or infrastructure, Fire Cloak™ enables rapid deployment and proven protection when it matters most.
Product & Use
What types of vehicles is Fire Cloak™ suitable for?
Fire Cloak™ is designed for all motor vehicle types including electric and hybrids — from passenger cars to SUVs, light commercials, vans, minibuses, MPVs and specialist fleet vehicles. For non-standard vehicles, we also offer made-to-measure options.
How many people are needed to deploy the blanket?
Two people can deploy Fire Cloak™ quickly and safely. The blankets are designed with reinforced pull handles to allow controlled, simple deployment even in emergency conditions.
Can the blanket be reused after a fire?
We are often asked if our Fire Cloak™ Electric Vehicle Fire Blanket can be used multiple times.
The answer is dependent on the situation in which the Fire Cloak is deployed:
- If the Fire Cloak™ is used to isolate a suspicious vehicle that is exhibiting an elevated battery temperature according to a Thermal Imaging Camera reading or hissing/popping sounds can be heard and the vehicle does NOT burst into flames, the answer is YES it can be reused! However, the Fire Cloak™ should be checked for signs of mechanical damage or heat degradation before storage.
- If the Fire Cloak™ is used to isolate a vehicle that ultimately sets on fire or is already alight the material will be heavily contaminated after use. There will probably be deposits of Heavy Metals such as Nickel, Manganese and Cobalt along with other chemicals that could include HF Acid, Organic Carbonates (solvents) and PCB’s. ANY Electric Vehicle Fire Blanket would then need to be decontaminated before reuse, which is a specialised and expensive process.
How do I choose the right size fire blanket?
The size depends on the type of vehicles you need to cover. We offer three standard sizes to suit everything from passenger cars to large panel vans, plus fully made-to-measure options for unique requirements. If you’re unsure, contact our product specialist for advice.
What materials is Fire Cloak™ made from?
Fire Cloak™ blankets are constructed from high-performance silica and modified glass fibre fabrics with fire-resistant silicone coatings. Each blanket is manufactured to withstand extreme heat, mechanical stress, and demanding real-world conditions.
Safety & Testing
What does DIN SPEC 91489:2024-11 certification mean?
DIN SPEC 91489 :2024-11 is the world’s most rigorous safety standard for EV fire blankets. It covers fire resistance, deployment, heat containment, mechanical strength, and safety performance — ensuring Fire Cloak™ delivers certified protection in real-world fire scenarios.
What temperatures can Fire Cloak™ withstand?
Fire Cloak™ can withstand up to 1,600°C for extended periods. In live burn tests, Fire Cloak™ has successfully contained thermal runaway fires with peak temperatures exceeding 900°C, reducing temperatures dramatically within minutes of deployment.
Has Fire Cloak™ been tested on real fires?
Yes. Fire Cloak™ has undergone full live burn testing, including independent live tests carried out across the world, including Horiba MIRA (UK). These tests confirm its ability to contain EV battery fires in advanced stages of thermal runaway.
Does the blanket contain PFAS or other harmful substances?
No. Fire Cloak™ blankets do not contain PFAS or other banned chemical treatments. They are manufactured to comply with current fire safety regulations and environmental standards.
Orders & Logistics
What’s included with each Fire Cloak™?
Each Fire Cloak™ blanket is supplied in a waterproof, robust, carry bag for safe transport, storage, and fast deployment when needed. Full product information and handling guidance are also provided.
How is the blanket stored and transported?
Fire Cloak™ blankets are supplied in a waterproof, robust, carry bag, allowing them to be stored safely in workshops, service bays, recovery vehicles, car parks, or storage rooms. We offer either Wall Mounted and Wheeled Boxes, ready for immediate deployment.
What is the lead time for delivery?
Standard blanket sizes are normally available for prompt dispatch. Made-to-measure orders are produced quickly here in the UK — please contact us for current lead times based on your requirements.
Do you ship internationally?
Yes. Fire Cloak™ is available for shipment worldwide. We work with customers globally, including fleet operators, recovery services, and safety authorities in multiple countries.
Can I request a quote or bulk pricing?
Absolutely. For quantity pricing, trade accounts, or bulk orders, please contact our team directly for a tailored quotation based on your requirements.
“Lithia UK has purchased a Fire Cloak™ vehicle blanket for each of its motor retail operations. It provides an effective option to manage the additional risks posed by the specific nature of fires involving electric vehicle batteries. A product that adds confidence to our operatives that our fire safety controls are robust and adopting to new challenges.”
“The Fire Cloak™ EV Blanket may appear straightforward, but it’s a meticulously engineered product, unmatched in its class. It stands as a highly valuable asset for Fire and Rescue Services across the UK.”
“Built on a foundation of trust, transparency and product testing, Fire Cloak™ is trusted by some of the biggest names in parts and service... Already making a difference around the world from the UK to the USA, through to South East Asia, including Australia and New Zealand. Fire Cloak™ is a name you can count on.”
“At Consolidated Dealers Co-Op Inc. we're so excited and proud to partner with Fire Cloak™! After exhaustive research we found The Best DIN Spec 91489 Certified fire blankets on the market to represent. What a great team to work with from across the pond, Matt is so knowledgeable and supportive! and a huge Toronto Blue Jays fan.”
“Our partnership with Matt and Fire Cloak™ has been exceptional. Their expertise and dedication to product innovation and quality have reinforced our confidence in representing Fire Cloak™ in Taiwan. Together, we've been able to deliver a trusted solution that provides effective and practical EV safety. A trusted solution, strengthened by a trusted partnership.”
Why Fire Cloak™?
- Tested, Passed and Certified to the world’s toughest EV fire safety standard — DIN SPEC 91489:2024-11
- Withstands 1,600°C and limits fire spread fast
- Proven by emergency services, insurers, and fleet operators
- Designed and manufactured in the UK
